DataSync FlexEdge

FlexEdge is a solution that strikes the perfect balance between efficient cooling and space optimization, completely removing the need for an outdoor unit by integrating the AC system directly within its design. By integrating power, cooling, cabling, and monitoring into a single system, FlexEdge achieves an optimal balance between affordability, functionality, and thermal management, making it the top choice for modern businesses adapting to evolving IT challenges.

Find Sales Contact

Features

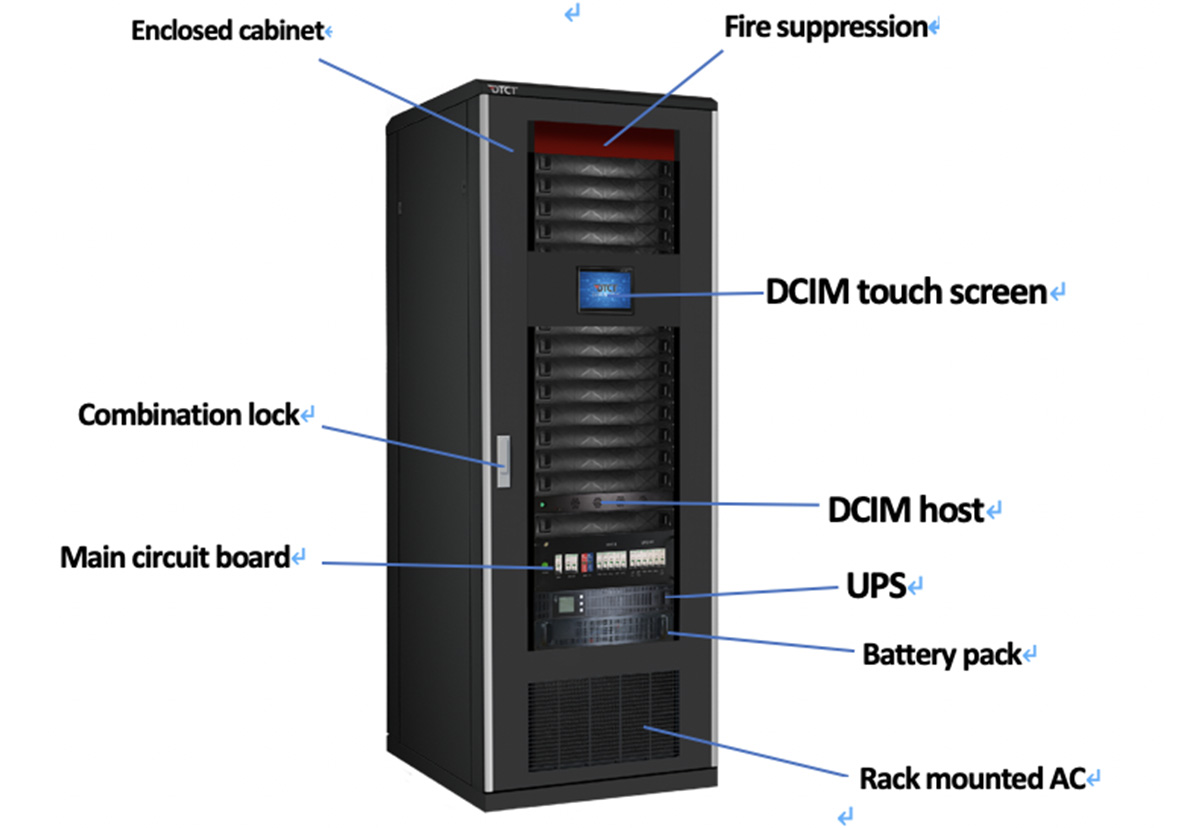

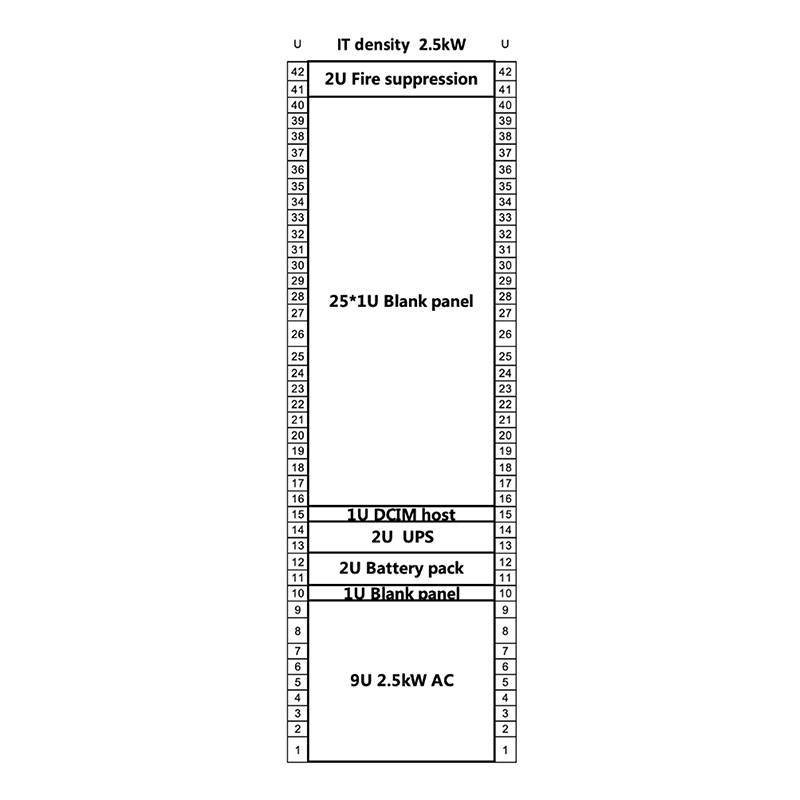

Integrated Design

FlexEdge combines all essential IT components into one compact, efficient unit:

  • UPS with Battery Backup: 6 kVA capacity combined with a battery pack capable of sustaining operations for up to 30 minutes, ensuring reliability during power interruptions.
  • Compact Cooling System: 2.5 kW self-contained cooling integrated within the cabinet. Requires no external units and includes an optional evaporating dish for condensate water management.
  • Enclosed Smart Cabinet: A 42U enclosed design with integrated DCIM system for monitoring, protection, and easy access.
  • Available IT Space: Offers 23U of rack space, allowing for flexible and scalable IT configurations to meet growing infrastructure demands

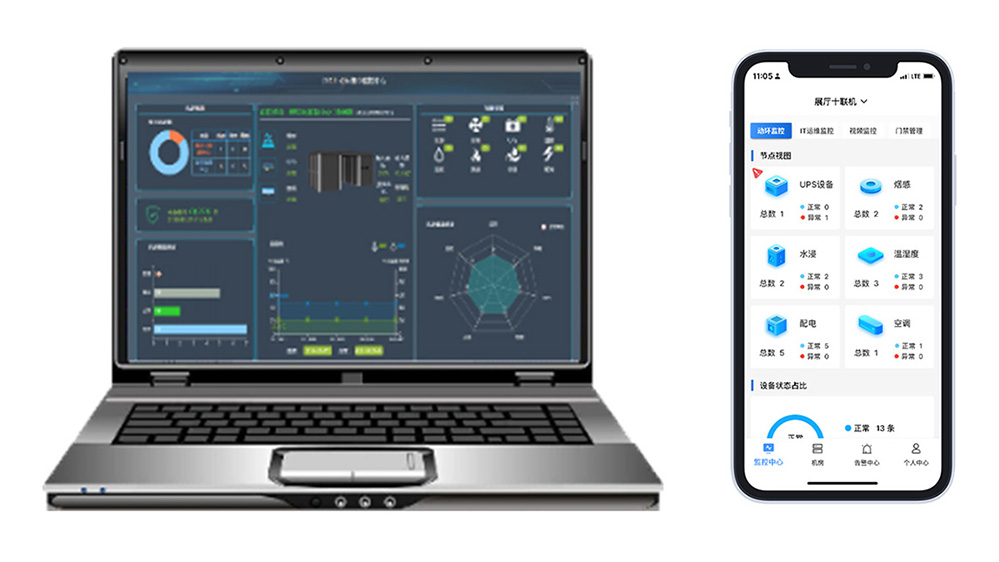

Smart Monitoring System

Effortlessly manage your infrastructure with the built-in DCIM system:

  • Monitoring: Tracks temperature, humidity, smoke, and device statuses (UPS, PDU, AC).
  • Management: Centralized control, fault diagnosis, asset registration, and maintenance reminders.
  • Visualization: 3D environment views, real-time alarms via SMS, sound, phone, or display.

Emergency Ventilation System

Incorporation of a system leveraging natural cold sources at the front and rear doors enabling a collaborative heat exchange between the free cooling module and the internal precision AC within the cabinet, to achieve substantial energy and cost savings. Ensures uninterrupted operation and prevents downtime.

  • Free-Air Cooling System: Utilizes room air for cooling when primary AC fails.
  • Mixed Cooling System: Uses natural cold sources at the front and rear doors for temperature control, enabling efficient heat exchange with internal precision AC to reduce energy and costs.

Benefits

blog

Fast Deployment

  • Pre-installed and Pre-configured: FlexEdge arrives ready to use, significantly cutting down the time required to set up your IT infrastructure.
  • Reduced Installation Time and Labor Costs: With no need for extensive on-site installations, businesses save both time and money, minimizing disruptions during deployment.
blog

Space-Saving Design

  • Eliminates Outdoor AC Units and Copper Piping: By integrating the cooling system within the cabinet, FlexEdge removes the need for bulky external equipment.
  • Compact Enclosed Cabinet: The 42U cabinet design not only saves space but also shields your equipment from dust and other environmental factors, ensuring reliability and reducing maintenance.
blog

Safe & Reliable

  • Comprehensive Monitoring: The DCIM system ensures all critical infrastructure components are constantly monitored for performance and potential issues.
  • Remote Management: Enables IT teams to manage the system efficiently from off-site locations.
  • Proactive Maintenance: Early fault detection and reminders for regular upkeep keep the system running optimally and prevent downtime.

DataSync FlexEdge Tech Specs

Product Tech Specifications DataSync FlexEdge
Model EN-D025-6042P
Nominal Cooling Capacity 2.5kW（EN-D025）
Operating Temperature (indoor side) 1℃—40℃
Operating Humidity RH (indoor side) 5%-80%RH (no condensation)
Operating Altitude Requirement Altitude＜1000m (＞1000m need to derate)
Operating Power Supply Voltage 220V-250V, Frequency:50Hz
Height (mm) 2000
Width (mm) 600
Depth (mm) 1000
PDU 2*Intelligent PDU with 2 16A inputs and 10 C13 outputs
Uninterruptible Power Supply Module 3kVA/ 2.7kW, backup time 10 mins
Infrastructure monitoring Without outdoor cooling module
O&M Operation Screen Standard, 10-inch intelligent touch screen
DCIM System
IT Space ≥23U
Accessories •Shelf •Bracket •Cable management board •Background light and power
