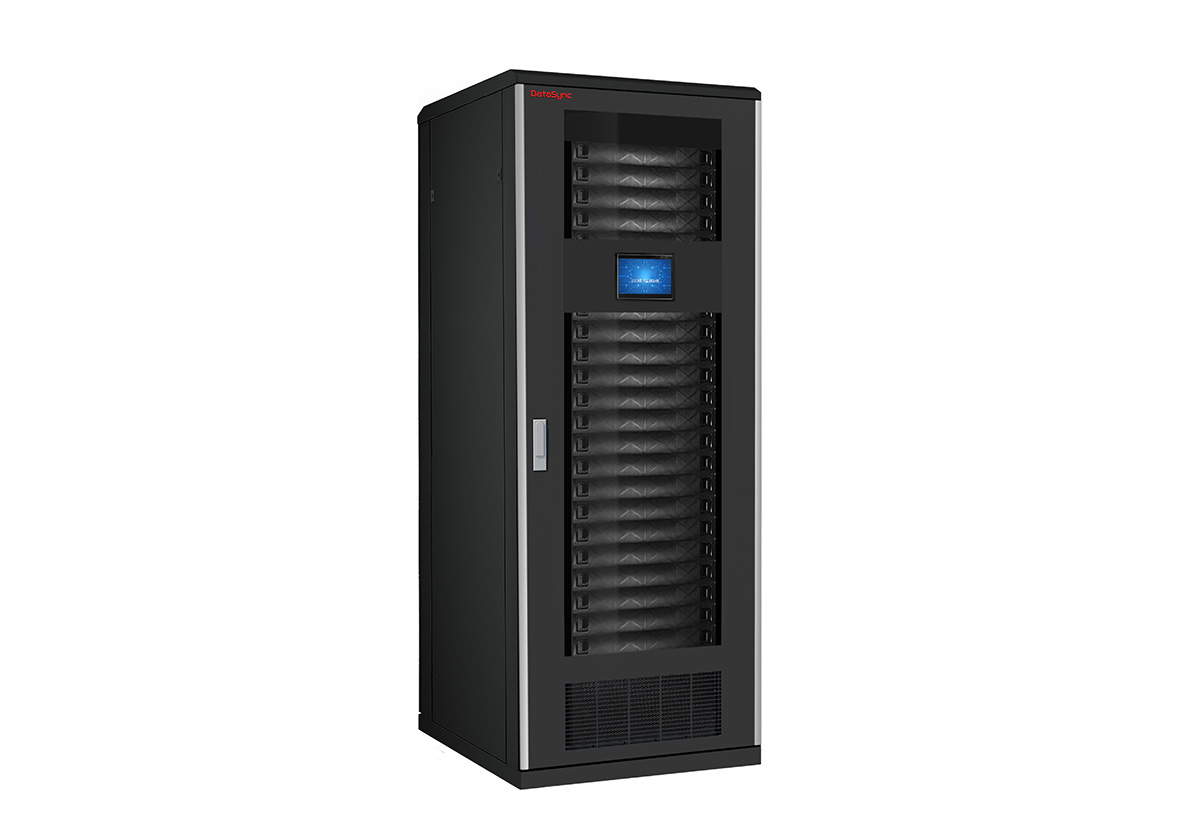

DataSync FlexNano

FlexNano is the most cost-efficient solution that offers the lowest price, unparalleled quiet operation, and the fastest installation. Designed to maximize space utilization in compact environments, FlexNano integrates power, cabling, and monitoring into a single system while utilizing naturally circulating external air for cooling, thereby eliminating the need for an AC unit. This innovative approach ensures a PUE of less than 1.1, making FlexNano the optimal selection for businesses seeking an affordable, efficient, and flexible IT infrastructure solution

Find Sales Contact

Features

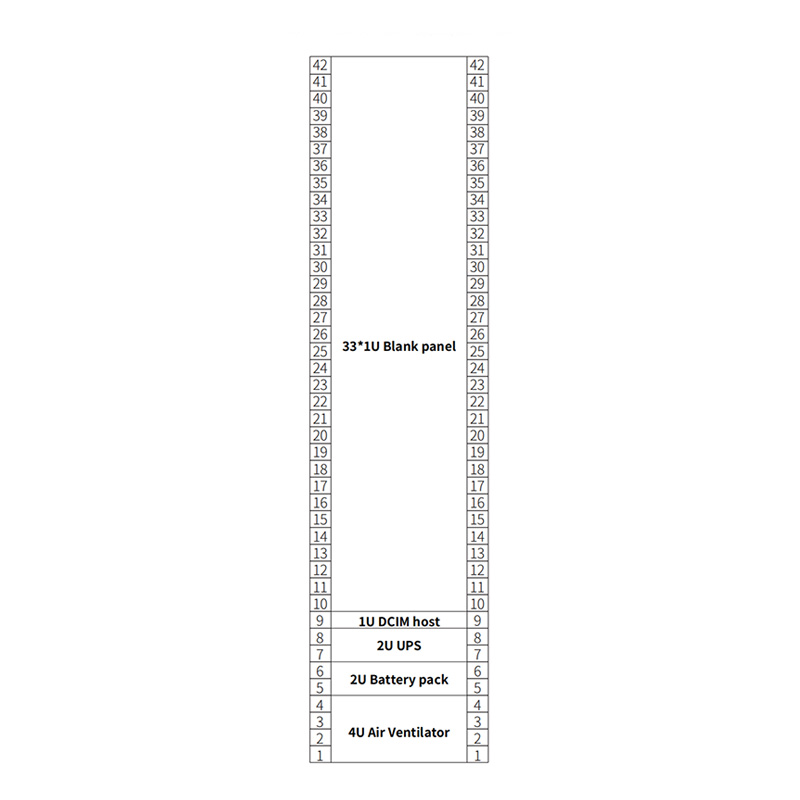

Integrated Design

FlexNano combines all essential IT components into one compact, efficient unit:

  • UPS with Battery Backup: 3 kVA capacity combined with a battery pack capable of sustaining operations for up to 10 minutes.
  • Air Ventilation System: Utilizes external ambient air for heat dissipation, removing the need for integrated cooling units.

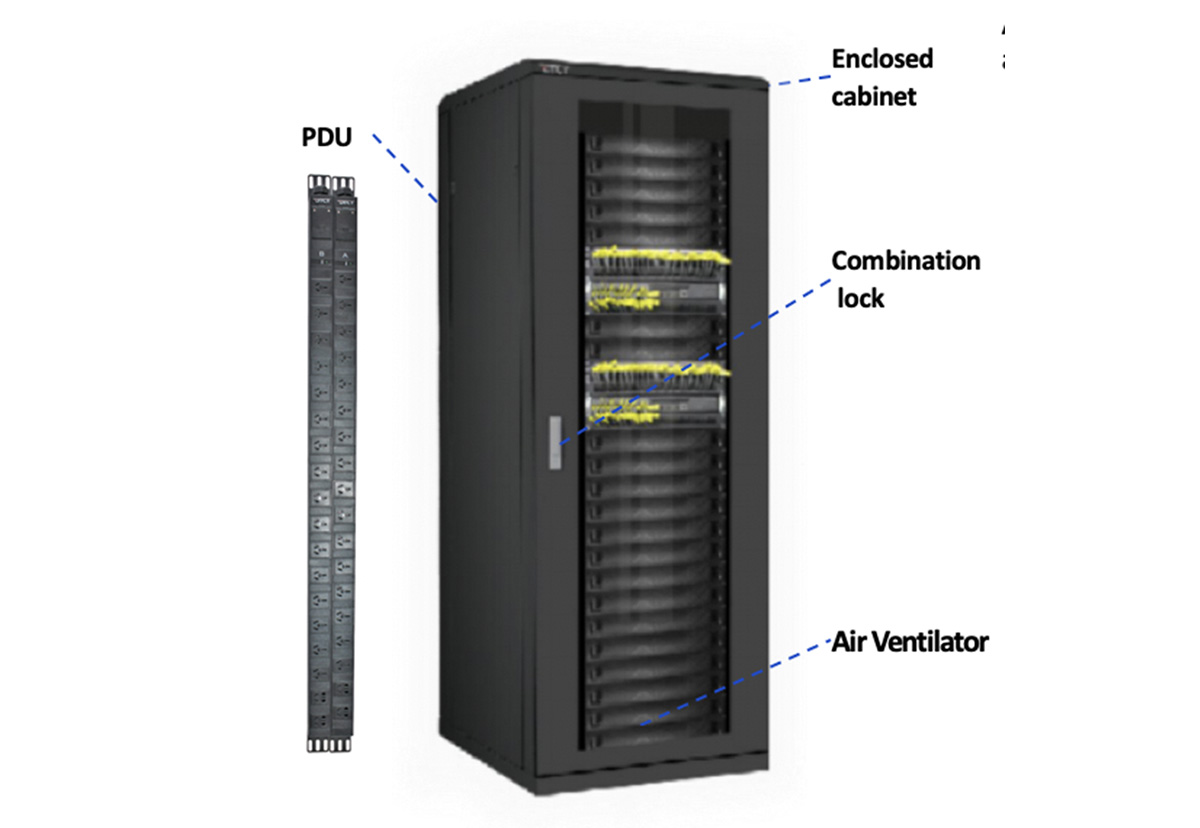

  • Enclosed Smart Cabinet: A 42U enclosed design with integrated DCIM system for monitoring, protection, and easy access.
  • Available IT Space: Offers 30U of rack space.

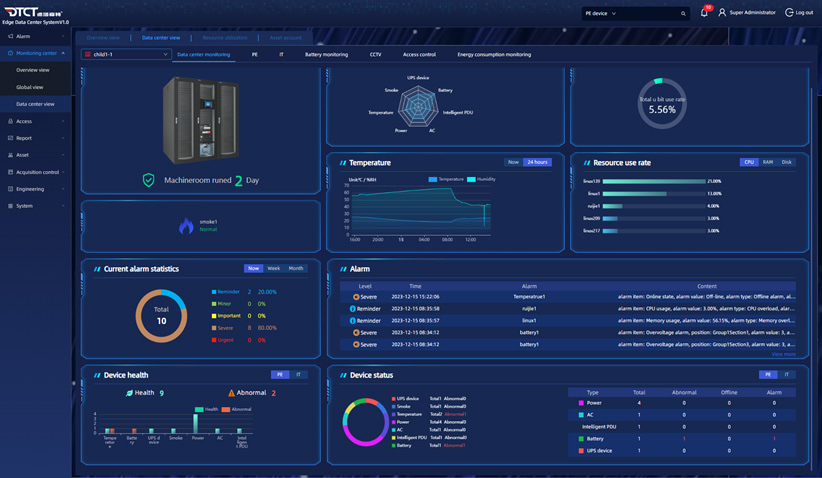

Smart Monitoring System

Effortlessly manage your infrastructure with the built-in DCIM system:

  • Monitoring: Tracks temperature, humidity, smoke, and device statuses (UPS, PDU).
  • Management: Centralized control, fault diagnosis, asset registration, and maintenance reminders.
  • Visualization: 3D environment views, real-time alarms via SMS, sound, phone, or display.

Free cooling System

Incorporation of a fan-driven airflow management system using ambient intake and targeted exhaust points to maintain stable internal temperatures without integrated AC. Ensures continuous cooling, prevents local hotspots, and avoids downtime.

  • Cross-Flow Fan Cooling System: Utilizes precision high-volume cross-flow fans for steady air circulation, eliminating hotspots within the cabinet.

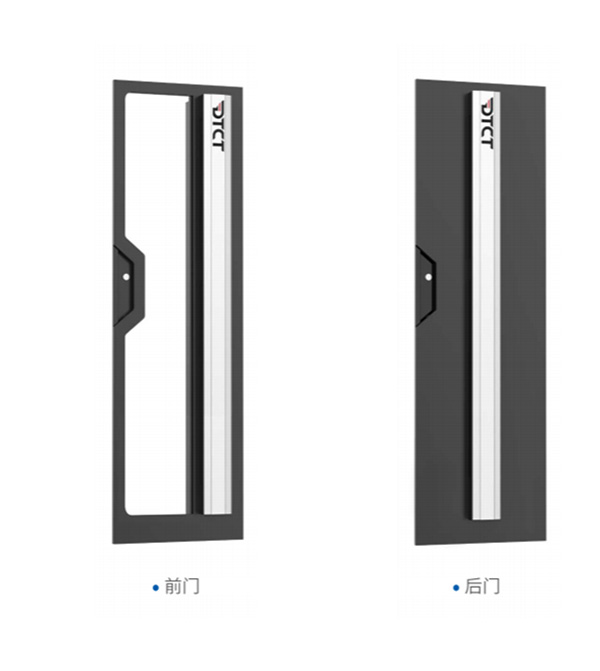

  • Emergency Exhaust Ventilation: Exhaust fans installed on the front and rear doors activate as needed to rapidly expel hot air, providing critical backup in maintaining optimal operating conditions.

Benefits

blog

Fast Deployment

  • Pre-installed and Pre-configured: FlexNano arrives ready to use, significantly cutting down the time required to set up your IT infrastructure.
  • Reduced Installation Time and Labor Costs: With no need for extensive on-site installations, businesses save both time and money, minimizing disruptions during deployment.
blog

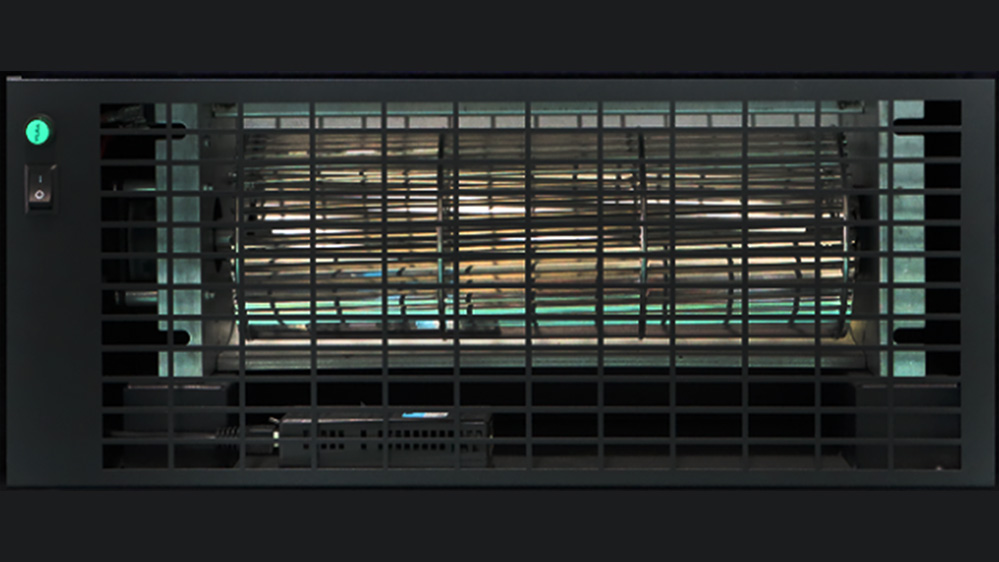

Energy Efficiency

  • No integrated AC or Copper Piping: By relying solely on free air and integrated fan system, FlexNano eliminates the need for AC units and copper piping.
  • Lower PUE value: Achieves an exceptionally low PUE of less than 1.1, maximizing energy efficiency and reducing operational costs.
blog

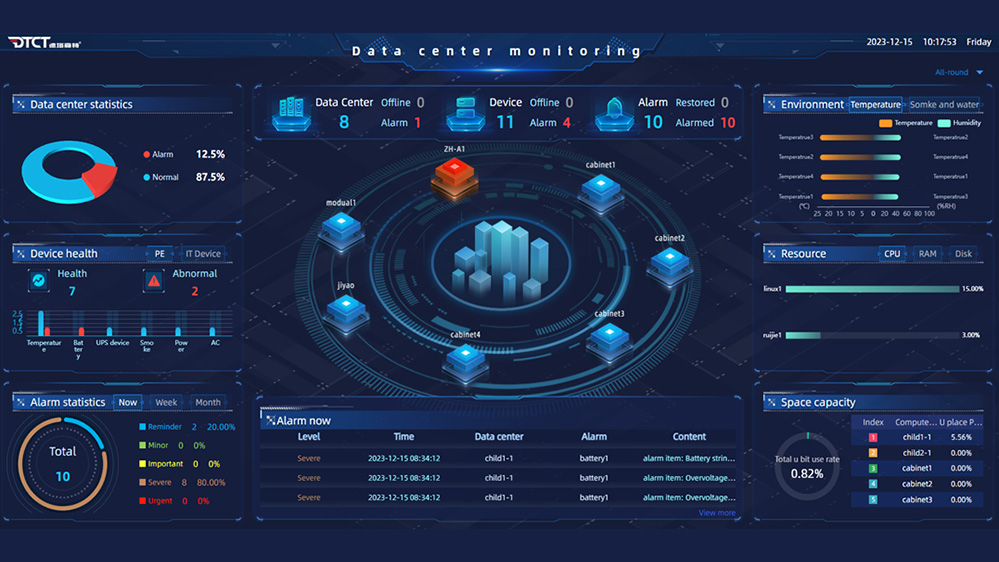

Safe & Reliable

  • Comprehensive Monitoring: The DCIM system ensures all critical infrastructure components are constantly monitored for performance and potential issues.
  • Remote Management: Enables IT teams to manage the system efficiently from off-site locations.
  • Proactive Maintenance: Early fault detection and reminders for regular upkeep keep the system running optimally and prevent downtime.

DataSync FlexNano Tech Specs

Product Tech Specifications DataSync FlexNano
Model EN-C-6042P
Air ventilation Standard
Operating Power Supply Voltage 220V-250V, Frequency: 50Hz
Height (mm) 2000
Width (mm) 600
Depth (mm) 1000
PDU 2* Intelligent PDU, 8*C13 output socket
UPS module 3kVA/ 2.7kW, backup time 10 mins
O&M Operation Screen Standard, 10-inch intelligent touch screen
DCIM System
IT Space ≥30U
Accessories •Shelf •Bracket •Cable management board •Background light and power
