AP-N505, Cloud Managed Wi-Fi 6 802.11ax 3000 Mbps Indoor Access Point, Seamless Roaming & 2 × 2 MU-MIMO Dual Radios, Manageable via Airware, Controller or Standalone (Without PoE Injector)
FS P/N: AP-N505
$159.00
$600.00
Product Highlights
- Dual Radios 3000 Mbps: 2.4 GHz (2x2), 5 GHz (2x2)
- 160 MHz Frequency Bandwidth, Supporting 5 GHz-prior Access
- Managed via Airware Cloud/Wireless Controller/Security Gateway or Operate Alone
- Seamless Roaming with Airware Cloud/Wireless Controller/Security Gateway
- WPA3, WIDS and RF Interference Tracking, etc. Ensure Data Security
- Support OFDMA, MU-MIMO, 1024-QAM, TWT
- Support High Density Connectivity for Maximum of 256 Clients
- Powered Using PoE (PoE Injector Sold Separately)
FS Wi-Fi 6 802.11ax 3000 Mbps Wireless Access Point, Seamless Roaming 2x2 MU-MIMO Dual Radios
Equipped with the latest and fastest Wi-Fi 6 (802.11ax) technology, AP-N505 is built to provide your business with next-level coverage, ease of installation and management. It supports 2x2 MU-MIMO, and can simultaneously deliver services on the 2.4 GHz and 5 GHz, achieving a rate of up to 3000 Mbps. With built-in smart antennas that enable signals to follow Stations (STAs), providing better coverage, the AP is ideal for indoor environments such as small and medium-sized offices, schools, retail spaces, banking and other scenarios.
Specifications

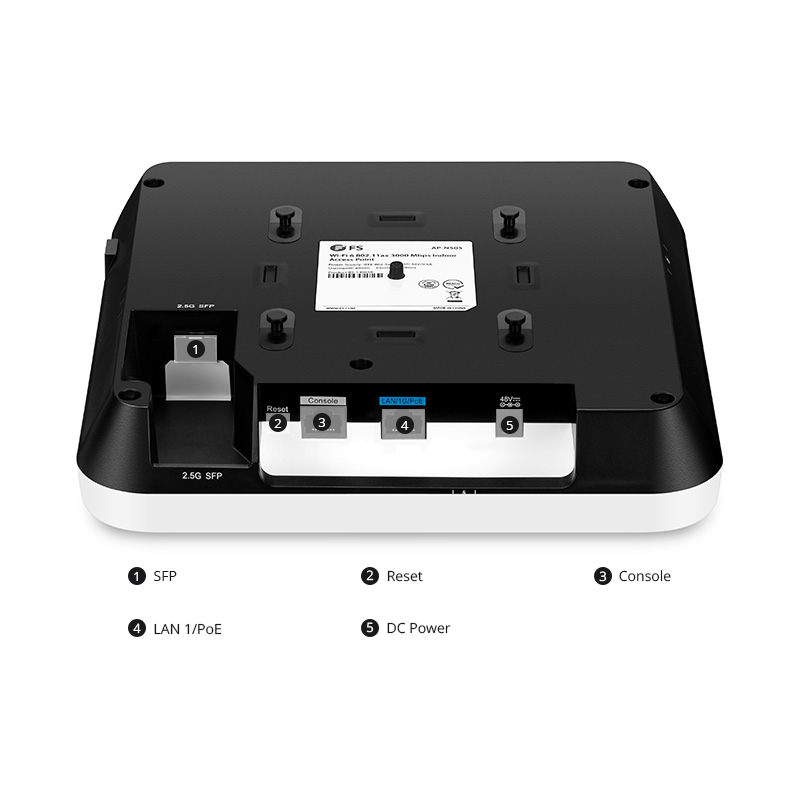

| Wired Interfaces | 1× 10/100/1000Base-T Ethernet port, 1× 2.5G SFP | AP Chip | Qualcomm IPQ5018 |
| Wireless Standards | 802.11/a/b/g/n/ac/ax | Frequency Band | 2.4 GHz and 5 GHz |
| Max Number of Users | 256 | Transmission Rate | 3000 Mbps |
| Recommended Number of Users | 64 | Multiple SSIDs | 32 |
| Antenna Type | Built-in Omnidirectional Antenna | MIMO | 2×2 |
| Antenna Gain | 2.4 GHz: 2× 3 dBi 5 GHz: 2× 3 dBi |
Operating Mode | FAT/FIT/Cloud AP |
| Reference Coverage Radius | 15~20m | Dimensions (HxWxD) | 8.66"×8.66"×1.94" (220×220×49mm) |

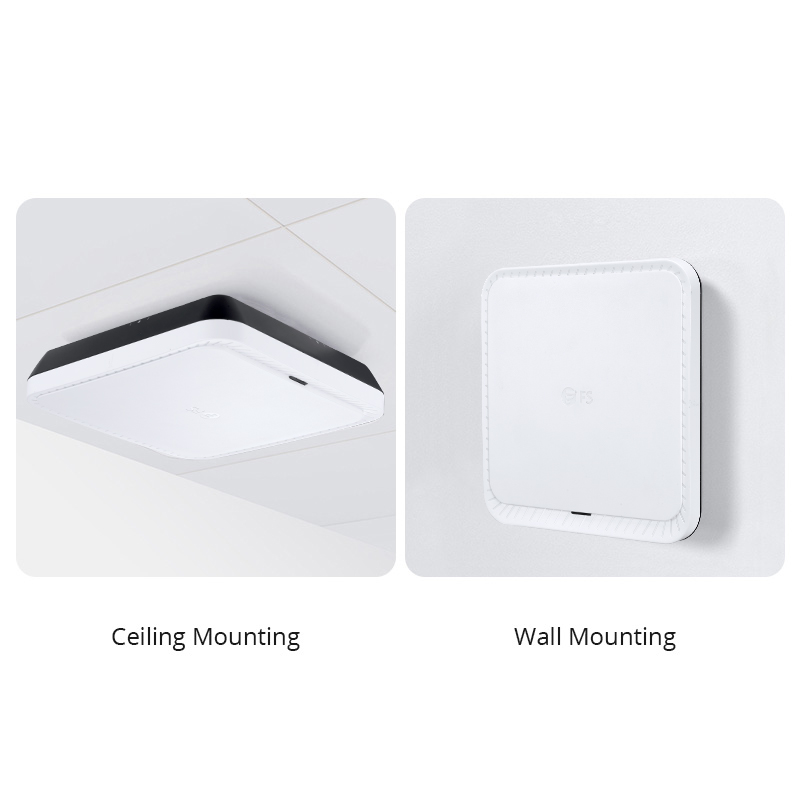

| Environment | Indoor | Mounting | Ceiling/Wall/T-Shaped Keel/Triangular Keel/Beam/Threaded Rod |
| Operating Temperature | -10 to 50°C (50 to 122°F) | Power Consumption | 12.95W |
| Storage Temperature | -40 to 70°C (40 to 158°F) | Power Supply | IEEE 802.3af PoE, DC 48V/0.6A |
3000 Mbps Ultra-Fast Speed with 160 MHz Band
Double Wi-Fi speeds 160 MHz band, ensuring smooth video streaming, instant audio messaging, and file downloads in seconds.
